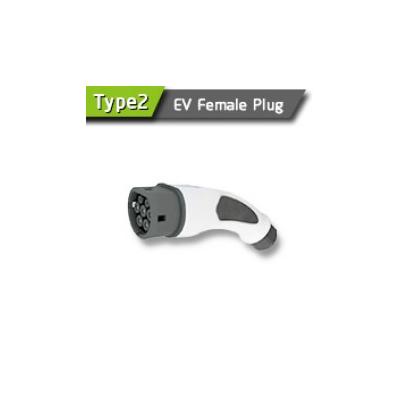

Type2 Female Plug

IEC 62196-2 Female Plug (EV End) for Electric Vehicle Charging
Work for : Tesla Model S, Smart, Renault Zoe, BMW i3 i8, Audi e-Tron, VW e-UP, VW e-Golf, etc...
● Meet IEC 62196-2 2010 SHEET 2-llb (Mennekes, Type 2) EU European standard
● Nice shape and easy to use, protection class IP54 (in mated conditions)

Parameters
● Model: BS-EVP001-F
● Reted current: 16A/32A/63A
● Working voltage: 250V AC
● Insulation resistance: > 1000M Ω
● Terminal temperature rise: <50K
● Withstand voltage: 2000V
● Contact impedance: 0.5m Ω Max
● Vibration resistance: Meet JDQ 53.3 requirements
● Working temperature: -30°C ~+ 50°C
● CE, TUV approved

Materials
● Shell Material: Thermo Plastic (Insulator inflammability UL94 VO)
● Contact Pin: Copper alloy, silver or nickel plating
● Sealing gasket: rubber or silicon rubber

Charging Cable Spec
●  16A: 3*2.5mm2+2*0.5mm2
    32A: 3*6.0mm2+2*0.5mm2
    63A:  3*10mm2+2*0.5mm2
●  Certificates: TUV or UL

Insert arrangements and functional definition
Mark     Functional Defination
1-(L1)    AC power
2-(L2)    (AC power)
3-(L3)    (AC power)
4-(N)      Netural
5-(PE)    PE
6-(CP)    Control confirmation
7-(PP)    Connection confirmation
